Manual Rotator 700/500 - MR4 Lifter Series

Name: Manual Rotator 700/500 - MR4 Lifter Series
Brand: WPG
SKU: 97217
Price: 5718.00 USD
Availability: InStock

Brand : WPG

SKU: 97217

$5,718.00

Manual Rotator 700 (AC) is a custom built piece of lifting and handling equipment that takes a couple weeks to produce With continuous 360° rotation, these Powr-Grip® vacuum lifters supply an efficient and economical way to feed vertically oriented processing machinery. Rotator Specifications Model MR11LAC MR49AC Load Capacity 700 lbs...

700 lbs [320 kg] AC

700 lbs [320 kg] AC w/ green lift light indicator

700 lbs [320 kg] Air

500 lbs [320 kg] AC

500 lbs [320 kg] AC w/ green lift light indicator

500 lbs [320 kg] Air

Subtotal: $5,718.00

More payment options

Description

Description

Manual Rotator 700 (AC) is a custom built piece of lifting and handling equipment that takes a couple weeks to produce

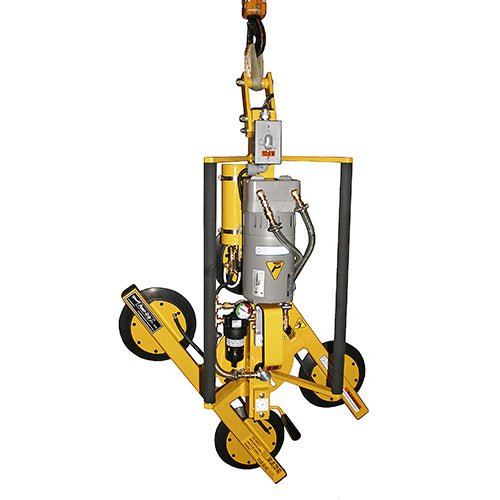

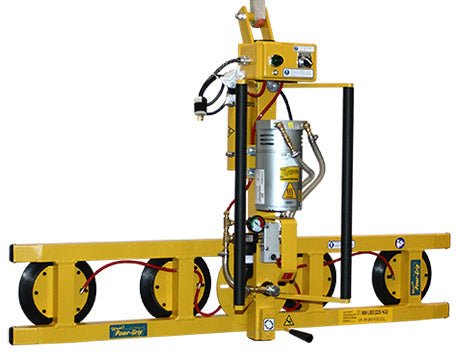

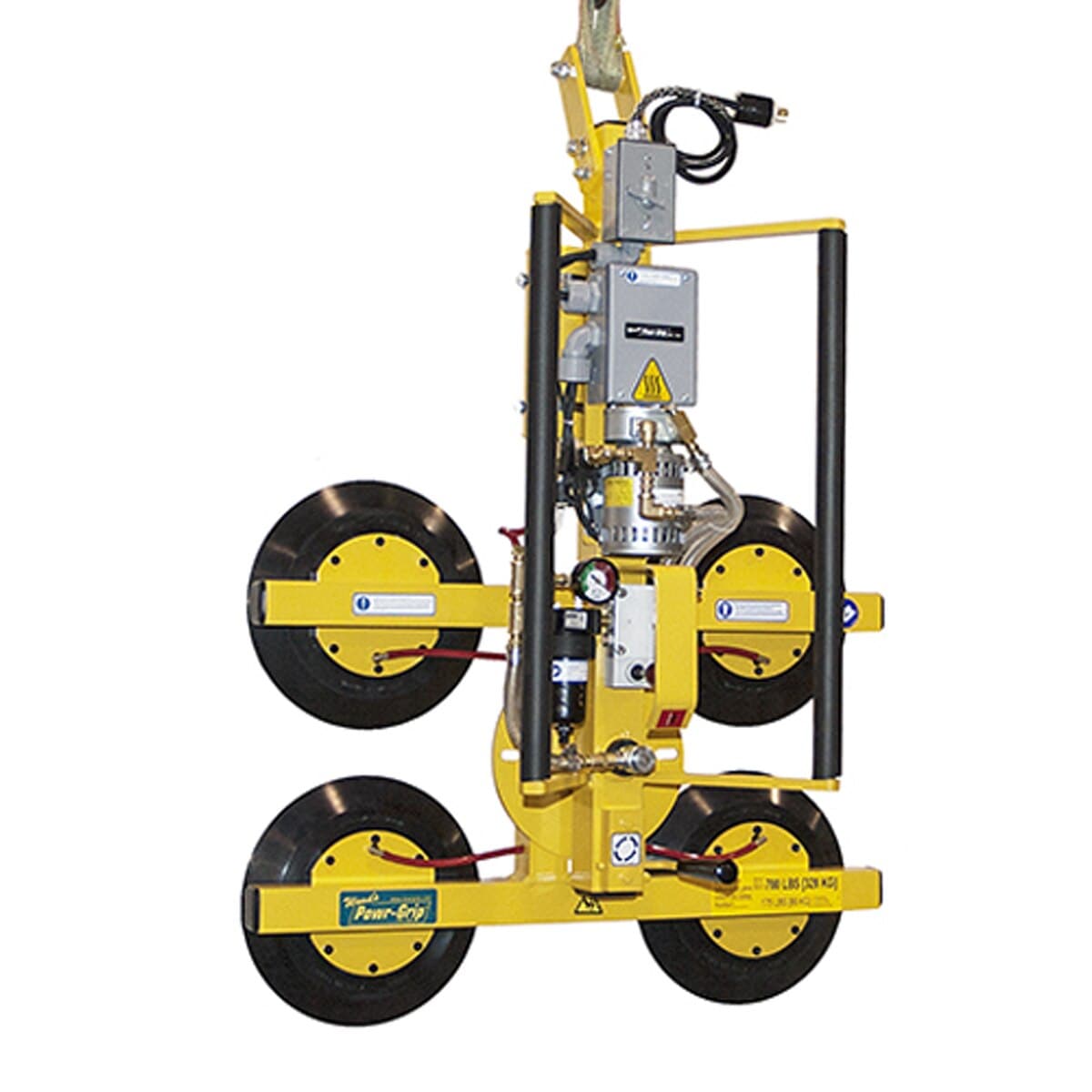

With continuous 360° rotation, these Powr-Grip® vacuum lifters supply an efficient and economical way to feed vertically oriented processing machinery.

Rotator

Specifications

Model	MR11LAC	MR49AC
Load Capacity	700 lbs [320 kg]	500 lbs [225 kg]
Standard Operating Power	120 volts AC, 60 hertz, 5 amps	120 volts AC, 60 hertz, 5 amps
Load Movement	Manual rotation, 360° edgewise with locking at each 1/4 turn	Manual rotation, 360° edgewise with locking at each 1/4 turn
Standard Features	Adjustable-position lift spool Vacuum gauge Vacuum reserve tankVacuum line filterSpring-mounted pads Twist-lock electrical plugBlow-off for quick release	Adjustable-position lift spool Vacuum gauge Vacuum reserve tankVacuum line filterSpring-mounted pads Twist-lock electrical plugBlow-off for quick release
Lifter Weight	92 lbs [42 kg]	92 lbs [42 kg]
Attach	2 seconds (approximately)	3 seconds (approximately)
Release	1 seconds (approximately)	2 seconds (approximately)
Standard Pad Spread	231/2" x 291/2" [599 mm x 752 mm]	26" x 32" [661 mm x 813 mm]
Number / Size of Pads	4 / 9" [23 cm] diameter	4 / 11" [28 cm] dia. lipped
