Groves 49-W60 50' L Bundle Rack, store bundles or slabs in your shop, Racks.

• Heavy-Duty powder coated finish.
• Post height options available (40", 60" or 80")
• Complete with 11” connector tube for butting rails together in a straight line for desired length
• Rails built with 2” square holes spaced 4” apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1” up from the bottom

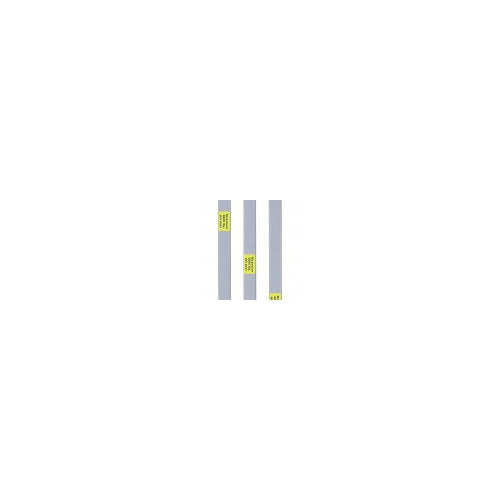

• 2” square tube posts and 2” square rubber post caps to separate bundles and slabs

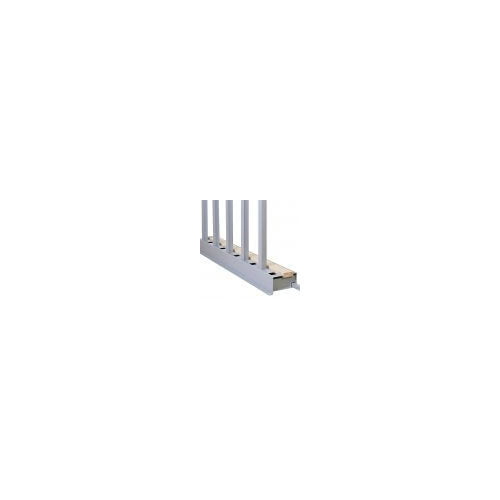

• Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4’s not included)
• Patent # 7143901

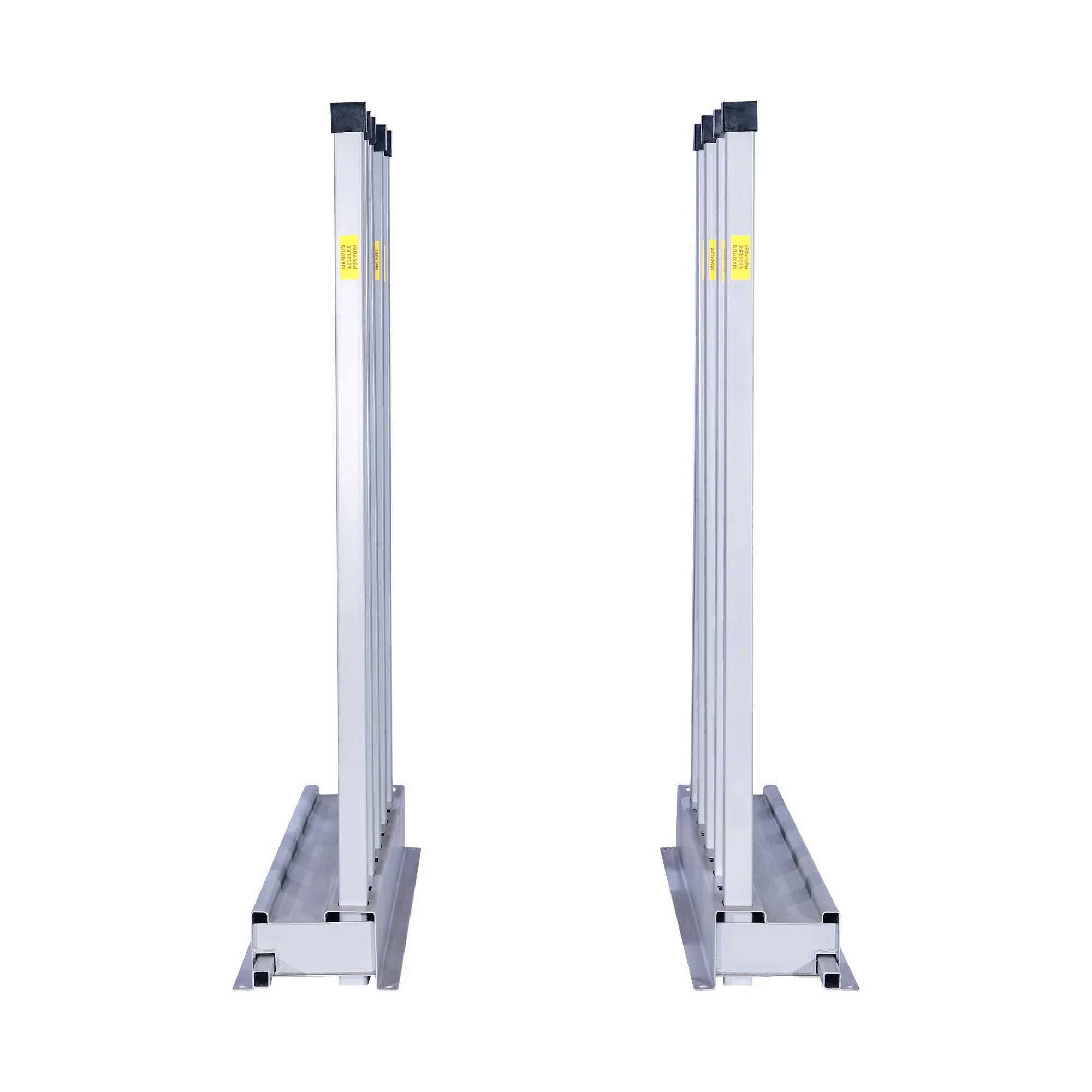

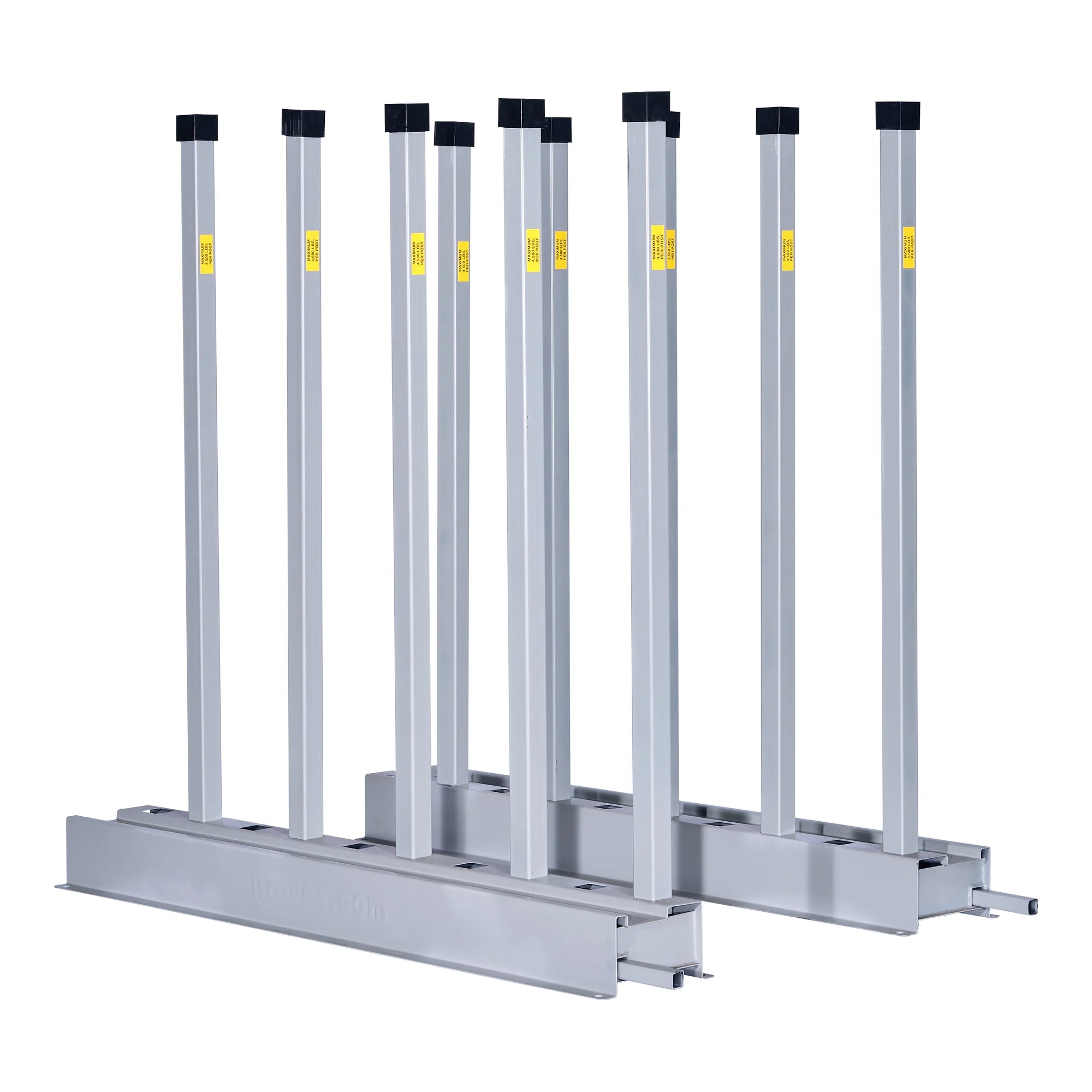

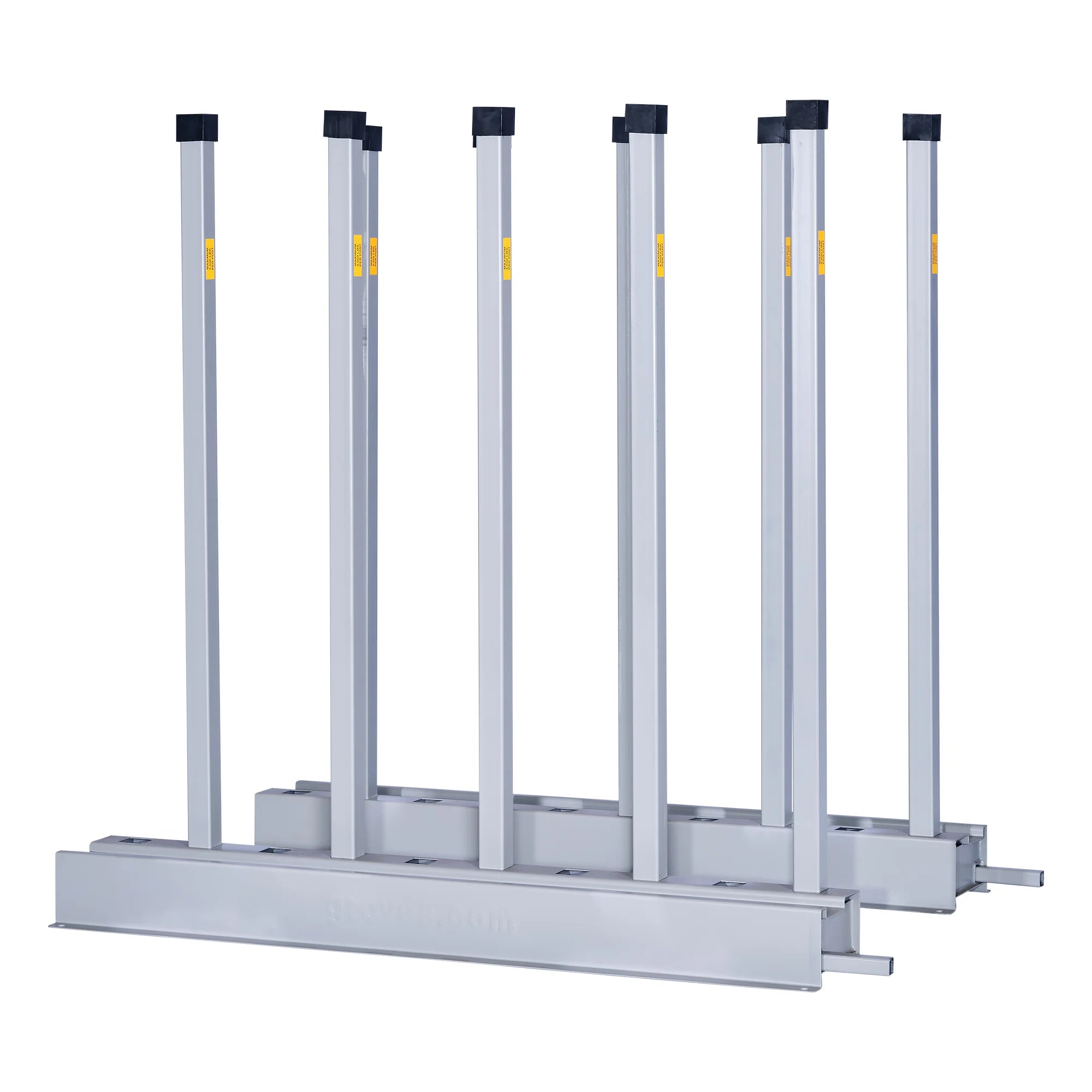

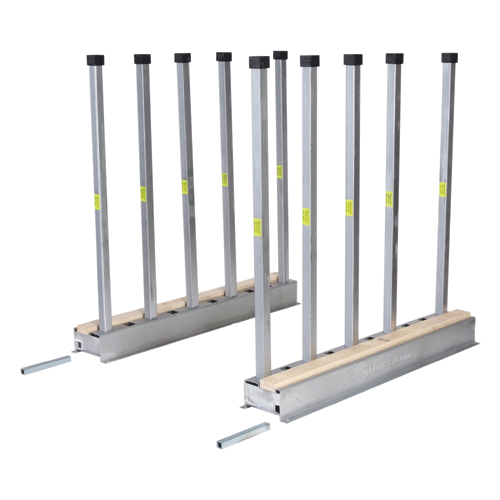

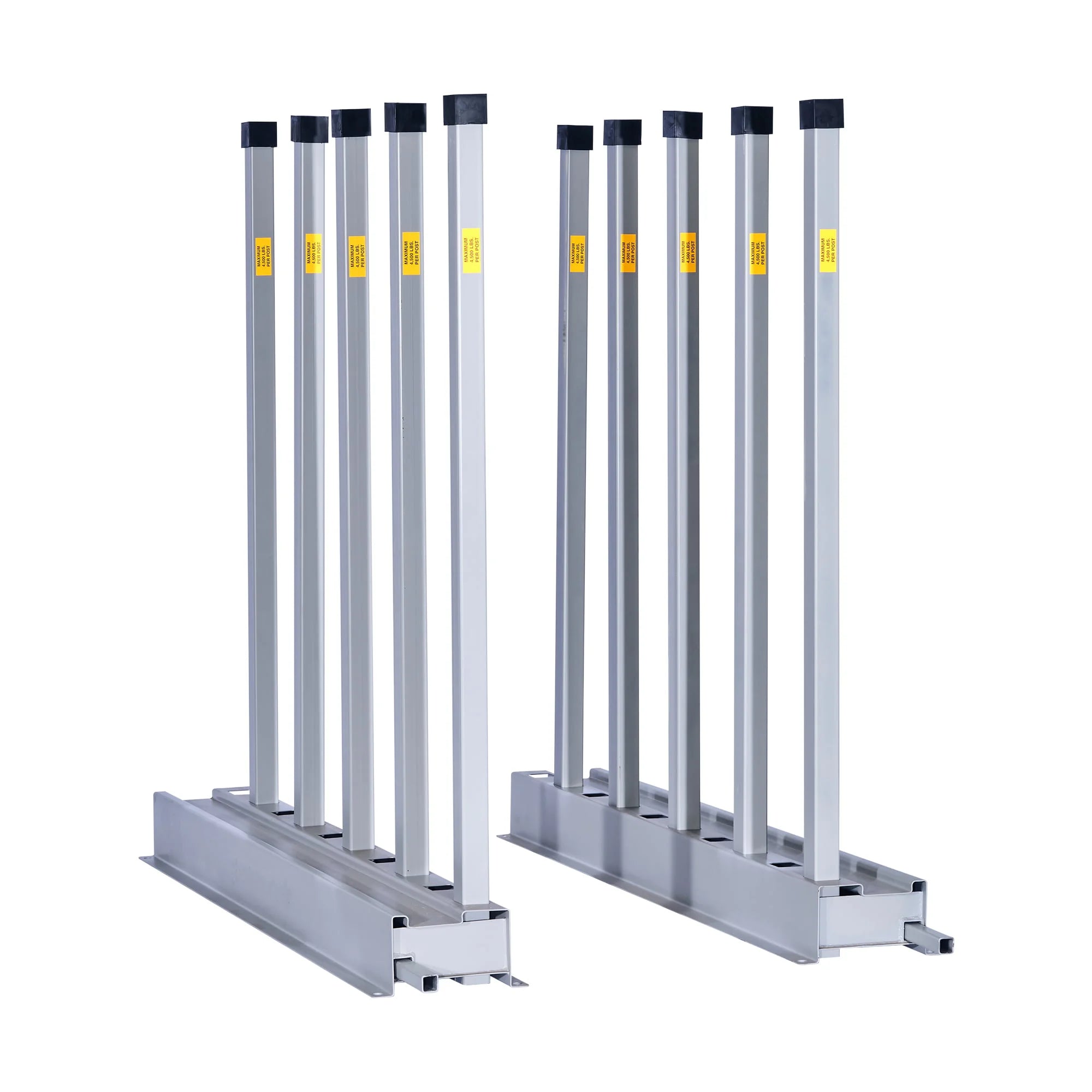

Easily store bundles or slabs in your shop or warehouse with this well-designed Bundle Rack from Groves. It features rails with slots to hold 2 x 4's, which protect the slab edges and the finish on the rails. The unit has square tube posts and rubber post caps to separate bundles and slabs.
Other features
Rails designed with slots to hold 2 x 4's which protect the slab edges and the finish on the rails (2 x 4's not included).
Complete with 11" connector tube for butting rails together in an straight line for desired length.
Rails built with 2" square holes spaced 4" apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1" up from the bottom.
2" square tube posts and 2" square rubber post caps to separate bundles and slabs.

• Heavy-duty powder-coated finish to protect against rust and corrosion.
• Capacity of 9,000 Lbs. per opening.

SAFETY WARNING:

Maximum weight allowed per opening is 9,000 lbs. (4,500 lb. per post)

Minimum of 2-degree angle when dropping stone in between posts

Inspect posts each time used

NOTE: When assembled the overall height of the posts are 5.5” less then listed

(EXAMPLE: 60” post will be 54.5” above the top of the rail)
