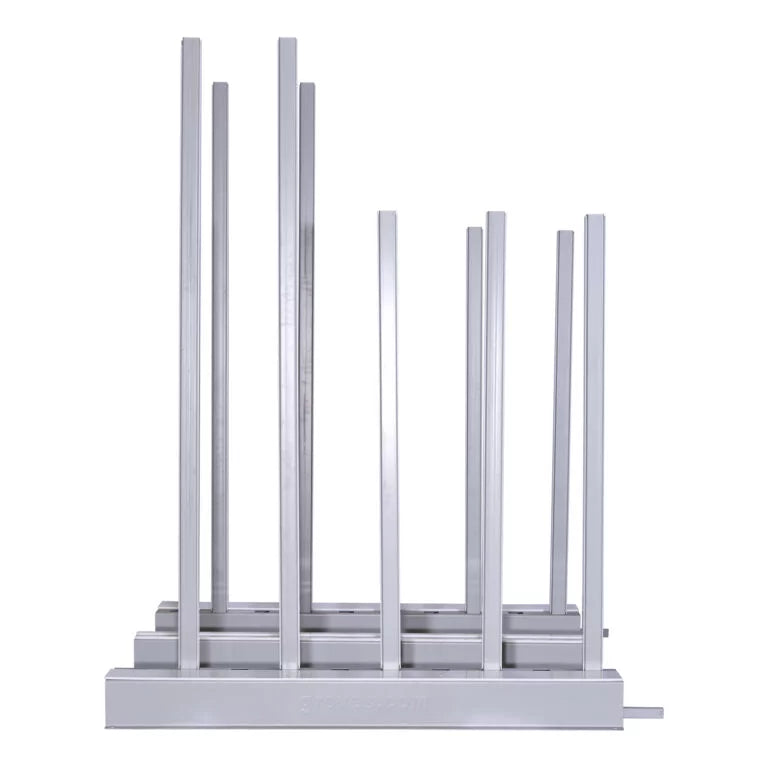

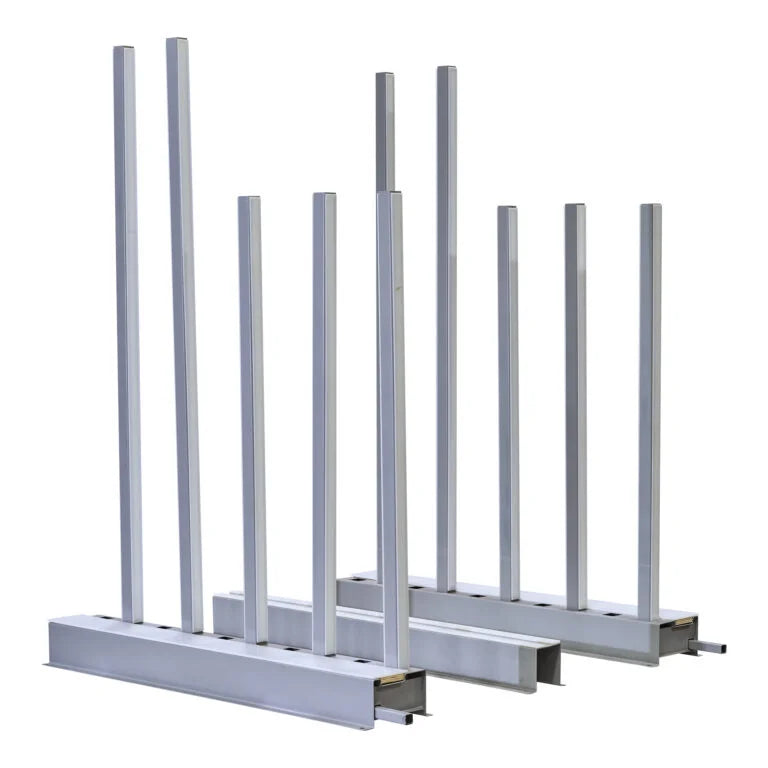

Groves 4pak 5" L Multi-Purpose Glass Storage System for Wood-Case, connector tube, racks.
4pak
$947.48
$1,200.00
SKU: Multi-Purpose Rack Dimensions: Rail Size: 11” x 5.5” x 60” | Center Rail Size: 4.5” (7.25” with flange) x 5.75” Heavy-duty powder coted finish Rails designed with slots to hold 2 x 4’s which protect the stored product and the finish on the rails (2 x 4s not included). Optional Easy Slide...
SKU: Multi-Purpose Rack Dimensions: Rail Size: 11” x 5.5” x 60” | Center Rail Size: 4.5” (7.25” with flange) x 5.75”
Other features
2" square tube posts to separate glass (can be customized in size to fit your needs).
Rails designed with slots to hold 2 x 4's which protect the slab edges and the finish on the rails (2 x 4's not included).
Complete with 11" connector tube for butting rails together in an straight line for desired length.
Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
- Heavy-duty powder coted finish
- Rails designed with slots to hold 2 x 4’s which protect the stored product and the finish on the rails (2 x 4s not included). Optional Easy Slide (made of low friction material) can be mounted to the 2 x 4’s for extra protection
- Center rail with easy slide must be used to support the glass when sliding individual lites in and out of the rack
- Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom
- 2" square tube posts and 2" square rubber post caps to separate glass
- Complete with 11" connector tube for butting rails together in a straight line for desired length
Other features
2" square tube posts to separate glass (can be customized in size to fit your needs).
Rails designed with slots to hold 2 x 4's which protect the slab edges and the finish on the rails (2 x 4's not included).
Complete with 11" connector tube for butting rails together in an straight line for desired length.
Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
- Features an heavy-duty powder-coated finish.
- Durable, affordable and reliable.
SAFETY WARNINGS:
-
Use .5″ holes located on bottom flange for securing rails to the floor
-
Maximum weight allowed per opening is 9,000 lbs. (4,500 lbs. per post)
-
Minimum of 2-degree angle when dropping stone in between posts
-
When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 60” post will be 54.5” above the top of the outside rail)
