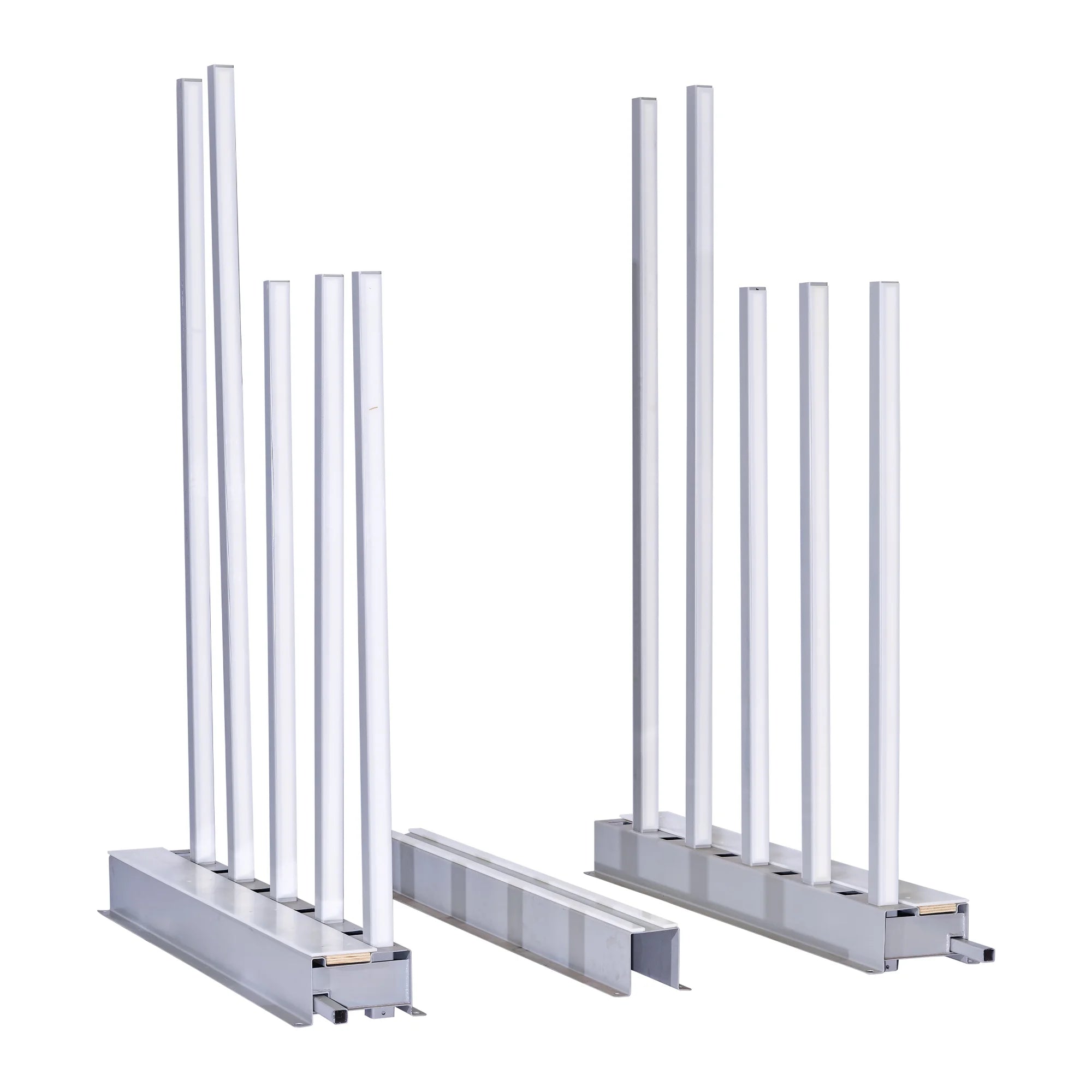

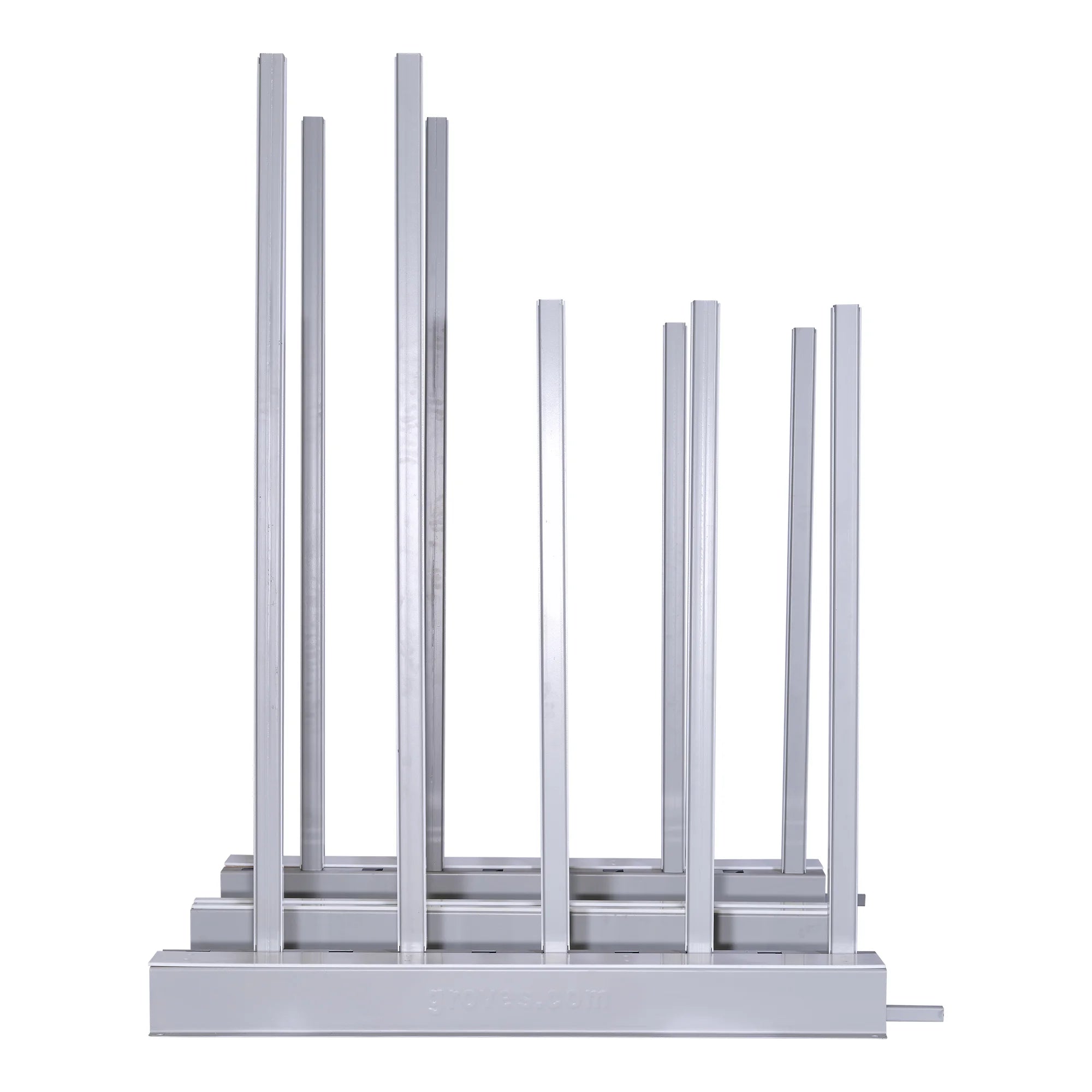

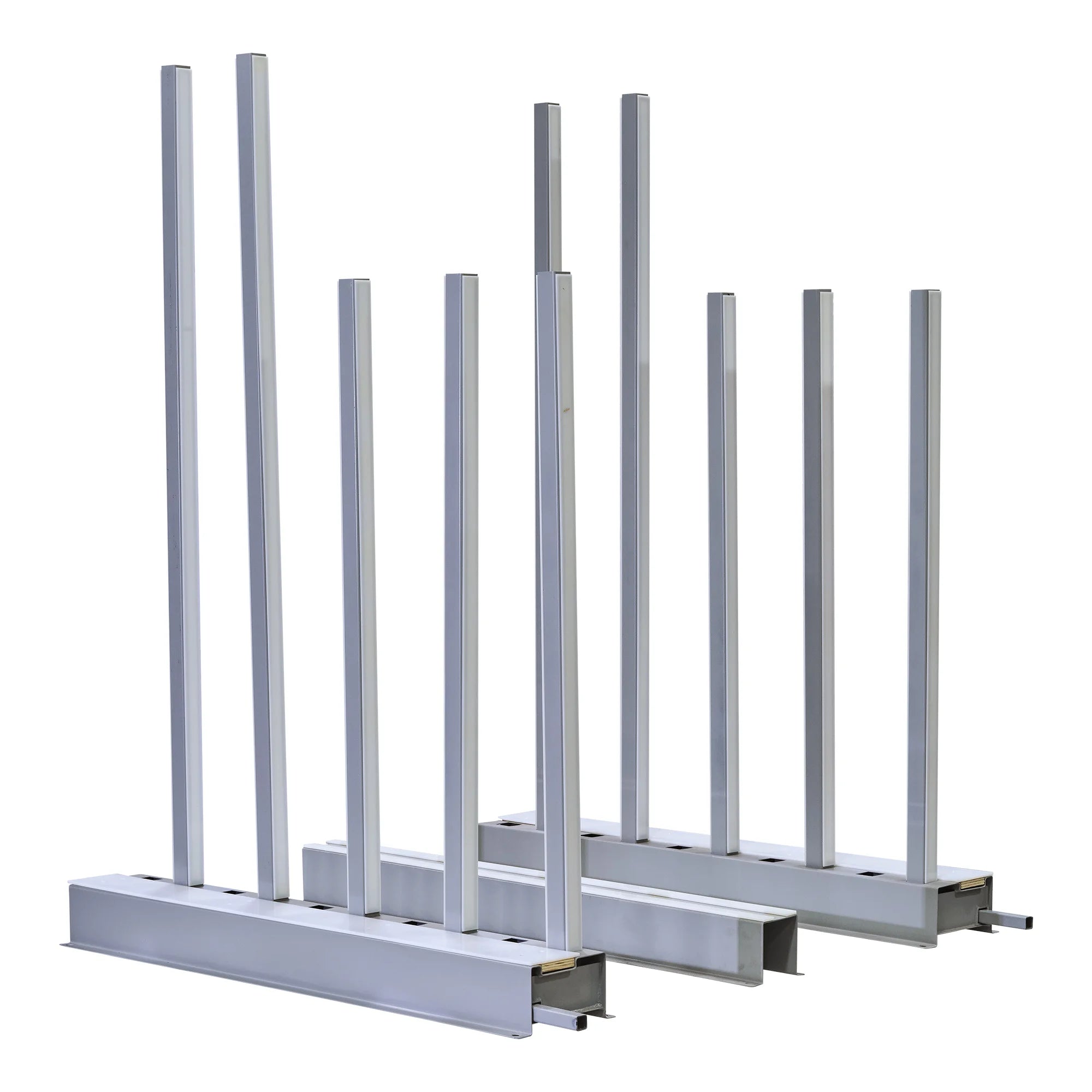

Groves 19pakES 20" L Easy Slide Multi-Purpose Glass Storage System For Glass-Packs And Wood-Cases

Dimensions: Rail Size: 11” x 5.5” x 60” | Center Rail Size: 4.5” (7.25” with flange) x 5.75”

• Heavy-duty powder coted finish
• Rails designed with slots to hold 2 x 4’s which protect the stored product and the finish on the rails (2 x 4s not included). Optional Easy Slide (made of low friction material) can be mounted to the 2 x 4’s for extra protection
• Center rail with easy slide must be used to support the glass when sliding individual lites in and out of the rack
• Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom
• 2" square tube posts and 2" square rubber post caps to separate glass
• Complete with 11" connector tube for butting rails together in a straight line for desired length

Using these Multi-Purpose Storage Systems effectively solves the need for storage and saves that space for other uses. You can store glass panels or wood packs, insulated and tempered glass, plastic sheets, shower doors, and more with ease and Suggested using easy slide packages for glass-packs and wood cases. Each unit comes with an connector tube for putting rails together in an straight line.
Other features
2" square tube posts to separate glass (can be customized in size to fit your needs).
Rails designed with slots to hold 2 x 4's which protect the slab edges and the finish on the rails (2 x 4's not included).
Optional Easy Slide can be mounted to the 2 x 4's for extra protection.
Center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the rack.
Complete with 11" connector tube for butting rails together in an straight line for desired length.
Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.

• Use the center rail with easy slide to support the glass when sliding individual pieces in and out of the racks.
• Features an heavy-duty powder-coated finish.
• Durable, affordable and reliable.

SAFETY WARNINGS:

• Use .5″ holes located on bottom flange for securing rails to the floor

• Maximum weight allowed per opening is 9,000 lbs. (4,500 lbs. per post)

• Minimum of 2-degree angle when dropping stone in between posts

• When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 60” post will be 54.5” above the top of the outside rail)
